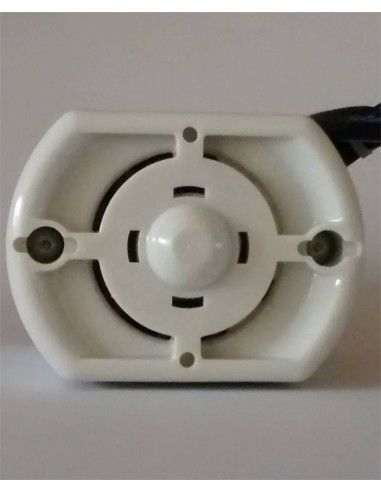

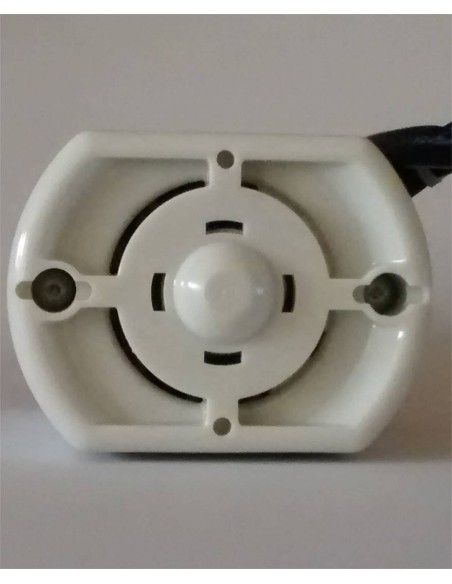

Domestic Sewing Machines 70 Watt motor XXL.
Check that the pulley corresponds to the one mounted by this motor which is of the XXL narrow toothed type with belt teeth 2 mm apart and a distance between them of 3.2 mm.
This sewing machine motor has an internal control so that if it reaches the temperature of 150 degrees it is prevented from functioning to avoid breakage.

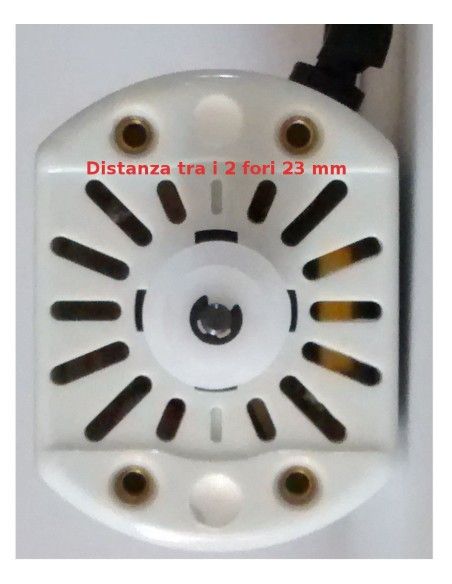

The motor for home sewing machines can be mounted both on brackets with horizontal holes (distance 23 mm approximately) and on those with holes diagonally with distance between holes of approximately 53.5 mm.
External dimensions of the motor
- Height 53 mm
- Length 123 mm
- Depth 69 mm
